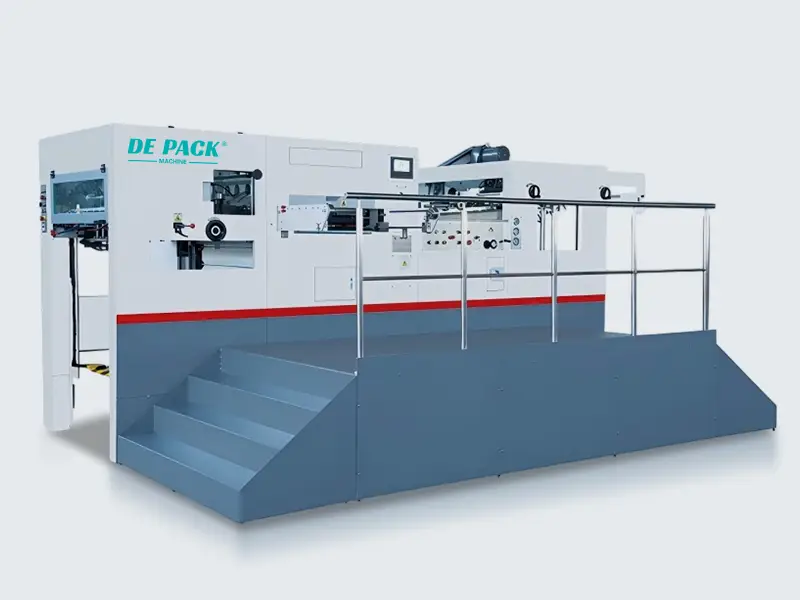

Efficient Platform Corrugated Die Cutting Machine Supplier - DE PACK
This platform die-cutting machine is available in semi-automatic (manual paper feeding) and fully automatic (feeder feeding; leading edge feeding) versions, suitable for various die-cutting applications such as lamination, packaging, and printing. It features a high-performance processing capability and a high-precision positioning and motion control system, enabling accurate die-cutting. Furthermore, it can complete a large number of die-cutting operations in a short time, thereby improving production efficiency. The user interface is simple and easy to understand, facilitating learning and use.
5.0
MOQ:
1pcs
Brand:
DE PACK
Place of Origin:
Cangzhou, Hebei
Delivery:
By Sea as requested
Payment terms:
TT Full payment before shipment (30% in advance, and the rest payment before shipment.)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
Complete design, accurate installation, high stability, high security, low noise.
Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
High precision intermittent mechanism, high cutting precision, running steadily.
Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
Automatic pressure adjust system, pressure digital display.
Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
Waste stripping section has 3-4 linked frames, human-friendly design, easy to install and uninstall the waste stripping plate.
Custom Services
Size and Width Customization
Based on the width of the customer's standard stock paper and the maximum planned carton size, we customize the machine's effective working width (e.g., 1050x750mm, 1630x1180mm, etc.).
We customize maximum and minimum die-cutting sizes to meet a full range of needs, from large packaging to micro-electronic product liners.
Material Adaptability and Pressure Customization
For different customers' primary corrugated types (e.g., E-flute, B-flute, BC-flute, EB-flute, etc.) and number of layers (three-layer, five-layer, seven-layer) and ivoryboard, we adjust and optimize the pressure range, uniformity, and control system of the main pressure system.
We customize the creasing die system to ensure clear, burst-line-free creasing results on paperboards of different grammage and flute types.
Technical Parameters
| Model | Max Paper Size | Min Paper Sire | Max. Die Cutting Size | Max Speed | Power | Pated Power | Max.working Pressure | Machine Weight | Cutting Line Height |
| D800S | 800x620(mm) | 360>290(mm) | 790x610(mm) | 7500(s/h) | 7.5(kw) | 13(kw) | 250(t) | 12(t) | 23.8(mm) |
| D1060S | 1060x760 (mm) | 450x360(mm) | 1050x750(mm) | 7500(s/h) | 11(kw) | 15(kw) | 300(t) | 16(t) | 23.8(mm) |
| D1060QY | 1060x760 (mm) | 450x360(mm) | 1050x750(mm) | 7500 (s/h) | 11(kw) | 15(kw) | 300(t) | 14(t) | 23.8(mm) |
| D1060SQ | 1060x760 (mm) | 450x360(mm) | 1050x750(mm) | 7000(s/h) | 11(kw) | 15(kw) | 300(t) | 20(t) | 23.8(mm) |
| D1060 | 1060x760(mm) | 450x360(mm) | 1050x750(mm) | 7000(s/h) | 11(kw) | 15(kw) | 300(t) | 14(t) | 23.8(mm) |
| D1300 | 1300x950(mm) | 550x480(mm) | 1290x920(mm) | 6500(s/h) | 11(kw) | 20(kw) | 300(t) | 15(t) | 23.8(mm) |
| D1500 | 1500x1100(mm) | 550x500(mm) | 1490x1090(mm) | 5500(s/h) | 15(kw) | 18(kw) | 300(t) | 16(t) | 23.8(mm) |
| D1650 | 1600x1200(mm) | 650x520(mm) | 1630x1180(mm) | 5000(s/h) | 15(kw) | 22(kw) | 300(t) | 18(t) | 23.8(mm) |
| D1300S | 1300x950(mm) | 550x480(mm) | 1290x920(mm) | 6500(s/h) | 11(kw) | 24(kw) | 300(t) | 18(t) | 23.8(mm) |
| D1500S | 1500x1100(mm) | 550x500(mm) | 1490x1090(mm) | 5500(s/h) | 15(kw) | 26(kw) | 300(t) | 20(t) | 23.8(mm) |
| D1650S | 1650x1200(mm) | 650x520(mm) | 1630x1180(mm) | 5000(s/h) | 15(kw) | 28(kw) | 300(t) | 26(t) | 23.8(mm) |
