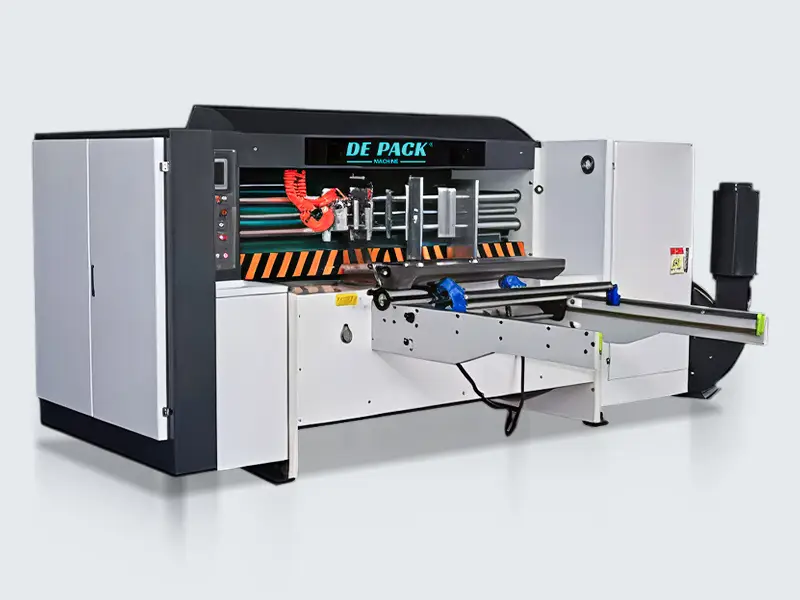

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 1

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 2

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 3

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 4

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 5

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 6

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK

The die-cutting machine is one of the most important machines in the post-printing equipment of carton packaging machinery. The die-cutting machine uses a die-cutting knife to apply a certain pressure through the stamping plate to cut cardboard or paper into a certain shape.
We can customize the most suitable die-cutting machine for customers according to their size and speed requirements and waste removal function.

MOQ:

1pcs

Brand:

DE PACK

Place of Origin:

Cangzhou, Hebei

Delivery:

By Sea as requested

Payment terms:

TT Full payment before shipment (30% in advance, and the rest payment before shipment.)

Inquiry

Write a Review

Product Advantages

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 7

Efficiency

Extremely fast speed, continuous production without interruption, and huge capacity.

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 8

Precision

High registration accuracy, especially suitable for pre-printed products; stable batch quality.

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 9

Quality

Instant die-cutting, good corrugated protection, and minimal loss of carton strength.

Cost-effective Rotary to Rotary Corrugated Die Cutting Machine Factory - DE PACK 10

Automation

Naturally suited for in-line production, it is the core of smart factories, reducing manual labor.

Economy

Low unit cost for long-term orders, significant economies of scale.

Custom Services

Size and Width Customization

Based on the width of the customer's standard stock paper and the maximum planned carton size, we customize the machine's effective working width (e.g., 1050x750mm, 1630x1180mm ,etc.)

We customize maximum and minimum die-cutting sizes to meet a full range of needs, from large packaging to micro-electronic product liners.

Material Adaptability and Pressure Customization

For different customers' primary corrugated types (e.g., E-flute, B-flute, BC-flute, EB-flute, etc.) and number of layers (three-layer, five-layer, seven-layer) and ivoryboard, we adjust and optimize the pressure range, uniformity, and control system of the main pressure system.

We customize the creasing die system to ensure clear, burst-line-free creasing results on paperboards of different grammage and flute types.

0-rotary to rotary die cutting machine 5

0-rotary to rotary die cutting machine 2

Technical Parameters

Model	Max feeding paper (mm)	Min feeding paper (mm)	Thickness of feeding paper	Feeding speed (pcs/min)	Power of main motor	Machine weight
1	1700x1200	350X500	11mm	30-200	4.0kw	4500kg
2	2000x1200	350X500	11mm	30-200	5.5kw	5000kg
3	2100x1400	400x600	11mm	30-200	7.5kw	5500kg
4	2400x1400	400x600	11mm	30-200	7.5kw	6000kg
5	2500X1400	500X600	11mm	30-200	11.0kw	7000kg
