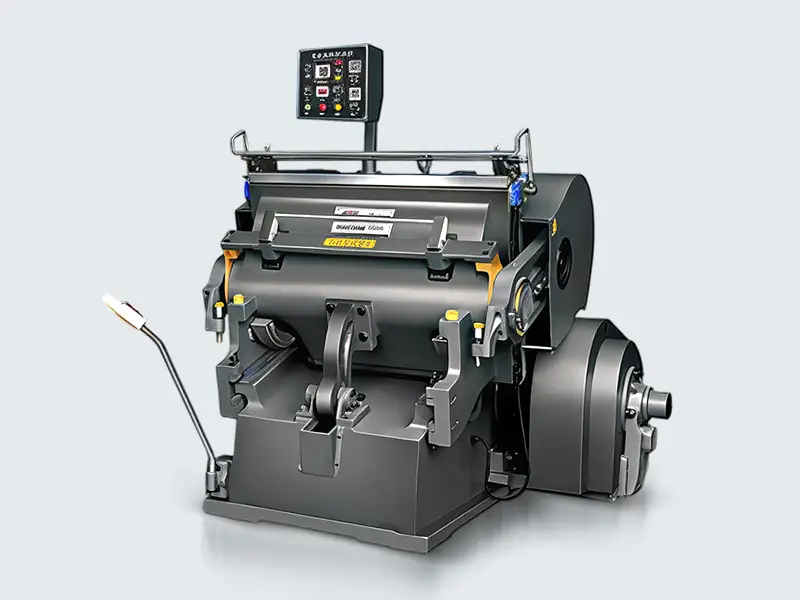

Manual die cutting machine, also called as manual punching machine, is a kind of special equipment for die cutting and creasing a wide range of material, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. This series machine has been well accepted by the customers from domestic and oversea market due to its outstanding performance, reliable in quality, easy for operating and low cost in price.

MOQ:

1pcs

Brand:

DE PACK

Place of Origin:

Cangzhou, Hebei

Delivery:

By Sea as requested

Payment terms:

TT Full payment before shipment (30% in advance, and the rest payment before shipment.)

Inquiry

Write a Review

Product Advantages

Reliable Manual Corrugated Die Cutting Machine Factory - DE PACK 3

High strength due to one piece casting by using top quality materials for the machine body.

Reliable Manual Corrugated Die Cutting Machine Factory - DE PACK 4

Smooth running, big pressure and low noise are obviously remarked as herringbone gear input and helical gear output mechanism is adopted.

Reliable Manual Corrugated Die Cutting Machine Factory - DE PACK 5

Single plate electromagnetic clutch is sensitive and reliable.

Reliable Manual Corrugated Die Cutting Machine Factory - DE PACK 6

Operational altitude is reasonably arranged, moveable platen opens to its optimum.

The electrical system is designed with IEC standard.

With functions as single, continuous operation and opening well, and the dwell time is adjustable.

The safely system is reliable.

With concentrated lubricating system.

Custom Services

Size and Width Customization

Based on the width of the customer's standard stock paper and the maximum planned carton size, we customize the machine's effective working width (e.g., 750 x 520mm,930 x 670mm ,1100x 800mm,etc.).

We customize maximum and minimum die-cutting sizes to meet a full range of needs, from large packaging to micro-electronic product liners.

Material Adaptability and Pressure Customization

For different customers' primary corrugated types (e.g., E-flute, B-flute, BC-flute, EB-flute, etc.) and number of layers (three-layer, five-layer, seven-layer), we adjust and optimize the pressure range, uniformity, and control system of the main pressure system.

We customize the creasing die system to ensure clear, burst-line-free creasing results on paperboards of different grammage and flute types.

Technical Parameters

Model	Max.Die-cutting Area	Working speed	Creasing Length	Motor	Weight	Overall Dimensions
ML 750	750x520mm	28±2 (sheets/min)	<15m	2.2kw	2000kg	1260 x1350 x1280mm
ML 930	930x670mm	23±2 (sheets/min)	<25m	4.0kw	3000kg	1800x 1600x1600mm
ML 1100	1100x 800mm	20±2 (sheets/min)	<32m	5.5kw	4000kg	1900 x 1800 x1700mm
ML 1200	1200 x830mm	20±2 (sheets/min)	<35m	5.5kw	4300kg	1900x 2000 x1700mm
ML 1300	1300 x 920mm	18±2 (sheets/min)	<40m	5.5kw/7.5kw	5500kg	2000x 2400x1800mm
ML 1400	1400 x1000mm	18±2 (sheets/min)	<45m	5.5kw/7.5kw	6000kg	2000 x 2450 x1900mm
ML 1500	1500 x1050mm	18±2 (sheets/min)	<45m	5.5kw/7.5kw	6500kg	2000 x 2500 x 1930mm
ML 1500	1500 x 1150mm	18±2 (sheets/min)	<45m	5.5kw/7.5kw	6800kg	2000 x2500 x1980mm
ML 1600	1600 x1250mm	16±2 (sheets/min)	<50m	15kw	11000kg	2170 x2560 x2130mm
ML 1800	1800x1300mm	16±2 (sheets/min)	<62m	15kw	12000kg	2240 x 2800 x 2230mm
ML 2000	2000X1400mm	16±2 (sheets/min)	<80m	15kw	13500kg	2280 x2900 x2230mm
ML 2200	2200 x1450mm	16±2 (sheets/min)	<90m	18kw	16500kg	2280 x3000 x2250mm
ML 2500	2500 x1600mm	13±2 (sheets/min)	<95m	22kw	20000kg	3580x2400x2550mm
