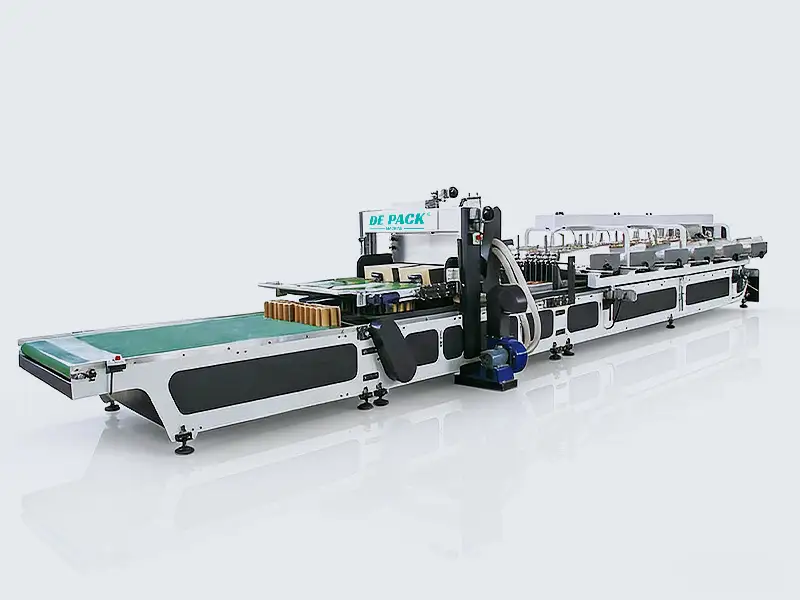

Automatic Corrugated Carton Partition Assembler Machine Supplier - DE PACK

It completely replaces the most time-consuming and labor-intensive step in traditional production—workers manually interlocking individual partitions. It receives stacked individual partitions and outputs complete inner liners ready for direct use in outer packaging, achieving an automated closed loop from partition production to application. This solves the fundamental pain points of slow speed, poor consistency, and high labor costs associated with manual assembly.

Model:

450/600/Customized

MOQ:

1pcs

Brand:

DE PACK

Place of Origin:

Cangzhou ,Hebei

Delivery:

By Sea as requested

Payment terms:

TT Full payment before shipment (30% in advance, and the rest payment before shipment.)

Inquiry

Write a Review

Product Advantages

Automatic Corrugated Carton Partition Assembler Machine Supplier - DE PACK 2

Simultaneous longitudinal and transverse paper feeding for cross-shaped insertion.

Automatic Corrugated Carton Partition Assembler Machine Supplier - DE PACK 3

Suitable for automated insertion of various carton partitions and dividers.

Automatic Corrugated Carton Partition Assembler Machine Supplier - DE PACK 4

Integrated pneumatic and electrical control ensures advanced equipment control.

Automatic Corrugated Carton Partition Assembler Machine Supplier - DE PACK 5

Each pneumatic device draws air from the main air pipe and is independently controlled, without mutual interference

Streamlined PLC HMI enables seamless, user-friendly integration for efficient and reliable operation.

Dual-station paper output ensures continuous workflow and doubles production efficiency.

Custom Services

Customizable Machine Structure and Dimensions

The overall length, width, and height of the machine can be adjusted to suit your production line layout and space constraints, optimizing integration with upstream and downstream equipment.

Processing Range and Compatibility

The machine can be customized to handle the maximum/minimum carton sizes. For different corrugated board types (such as A/B/C/E/F and multi-layer composite corrugations) with varying thicknesses and stiffness, the gripping force, folding stroke, and tolerance can be adjusted to ensure stable processing of your commonly used cardboard materials.

Modular Workstation Expansion

Insertion stations can be added or removed according to capacity requirements, supporting single-station to multi-station simultaneous operation, adapting to high-speed production or complex liner assembly scenarios.

Technical Parameters

Model	DP450-3L	DP600-3L
Horizontal inserting width: A	80-900mm	80-900mm
Lengthways sheets length: B	210-450mm	210~600mm
Clapboard Height: C	70-300mm	70-300mm
Horizontal clapboard distance: D	20-400mm	20~500mm
Lengthways clapboard distance: E	45-850	45-850
Carton inserting mouth width: F	≥board thickness	≥board thickness
Number of longitudinalcardboard	1-6	1-6
