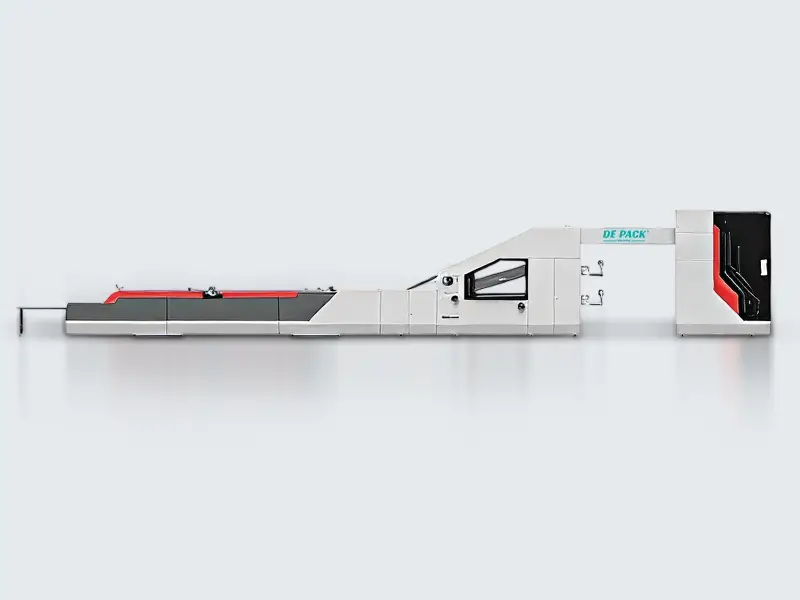

Automatic 5 Ply 3 in 1 Automatic Cardboard Flute Laminator Machine Factory Sales - DE PACK
DE PACK 5 Ply 3 in 1 Automatic Flute Laminator integrates a full set of automatic functional modules, including an automatic face paper lifting unit, a face paper conveying unit, a dual bottom paper conveying unit (supporting both synchronous and asynchronous operation), a dual bottom paper positioning unit, a cyclic gluing unit, a pressing unit, a conveying unit, and an automatic stacking unit.
This automatic laminator is specially designed for bonding printed paper sheets to corrugated boards or cardboard with a grammage of over 350gsm. It features outstanding positioning precision and stable high-speed operation, ensuring smooth and high-quality laminating effects even in mass production.
As a high-performance and reliable laminating equipment, it is widely recognized as an ideal choice for various packaging enterprises at home and abroad, effectively meeting the diverse laminating needs of modern packaging production.
This automatic laminator is specially designed for bonding printed paper sheets to corrugated boards or cardboard with a grammage of over 350gsm. It features outstanding positioning precision and stable high-speed operation, ensuring smooth and high-quality laminating effects even in mass production.
As a high-performance and reliable laminating equipment, it is widely recognized as an ideal choice for various packaging enterprises at home and abroad, effectively meeting the diverse laminating needs of modern packaging production.
5.0
Model:
DE PACK-1300F
MOQ:
1pcs
Brand:
DE PACK
Place of Origin:
Hebei, China
Delivery:
By Sea
Payment terms:
TT Full payment before shipment (30% in advance, and the rest payment before shipment.)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
Integrated & Efficient Structure
Adopts a fully automatic 3-in-1 integrated design, covering automatic paper feeding, precise gluing, high-pressure lamination and automatic stacking. The whole line runs smoothly with stable high-speed operation, greatly improving production efficiency and reducing manual intervention.
High Precision & Wide Adaptability
Equipped with dual bottom paper positioning and synchronous/asynchronous conveying systems, it ensures accurate alignment of face paper and base paper. It is suitable for laminating printed paper to corrugated boards or cardboards over 350gsm, meeting diverse packaging lamination needs with high precision.
Stable & Reliable Performance
Features a cyclic gluing system and durable pressing mechanism, ensuring uniform gluing and firm bonding. With stable operation and low failure rate, it is an ideal choice for packaging enterprises at home and abroad to achieve high-quality and high-efficiency lamination production.
Custom Services
Tailor-Made Solutions
We provide customized services based on your production scale, product specifications and core needs to ensure the equipment fits your production line.
Multi-Angle Adaptation
Core parameters (laminating width, speed, etc.) and functional modules can be adjusted to meet special production needs.
Exclusive After-Sales
Matching services include on-site installation, operation training and regular maintenance guidance for smooth use.
Technical Parameters
| Model | DE-PACK 1300F | DE-PACK 1450F | DE-PACK 1600F | ||
| Max.Papersize (WL) | 1300*1200mm | 1450*1200mm | 1600*1200mm | ||
| Min.Papersize (WL) | 550*550mm | ||||
| Face paper thickness | 180-600/gsm | ||||
| Bottom paper | A/B/ C/ E/ F/G 2ply flute | ||||
| Precision | 1.5mm | ||||
| Max Speed | 6000pcs/h | ||||
| Height of face paper pile | 1600mm | ||||
| Face paper table capacity | 1500kg | ||||
| Height of bottom 2ply pile | 400mm | ||||
| Total power | 20kw 22KW 22KW | ||||
| Operation way | AUTO SET | ||||
| Dimension | 15*2.2*2.5m | 15*2.4*2.5m | 15*2.5*2.5m | ||
| Machine weight | 5000kg | 5500kg | 6000kg | ||
