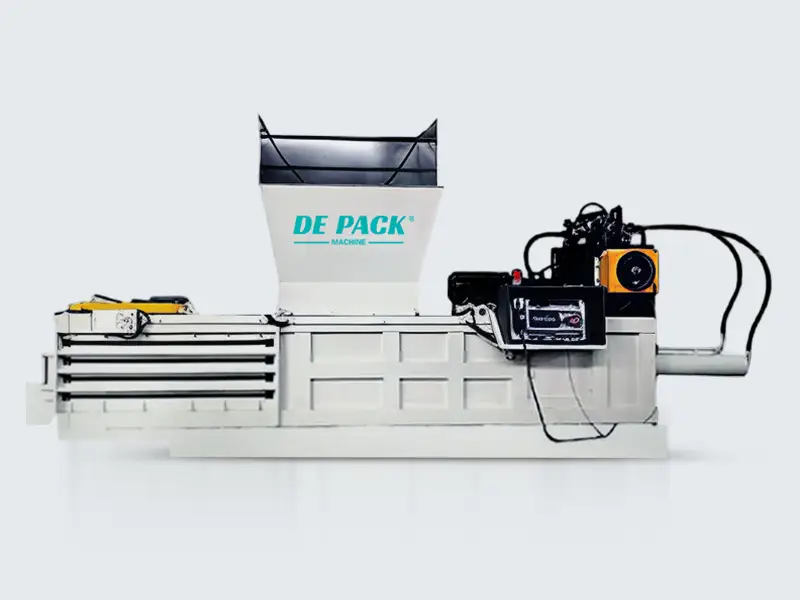

Custom Horizontal waste paper baling machine Manufacturer - DE PACK
Specialized in recycling and compressing the loose materials like waste paper, cardboard/ cartons, carton trims, waste books, magazines, straw, wheat straw hood, etc. The particular anti-slide design of the machine makes nicer bales. Operation mode of conveying line, air-suction pipeline, and manual feeding.
5.0
Price Terms:
T/T
Model:
20 ton
MOQ:
1pcs
Brand:
DE PACK
Place of Origin:
China Hebei
Delivery:
Ways Sea as requested
Payment terms:
TT Full payment before shipment (30% in advance, and the rest payment before shipment.)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity.
Automatic tension system ensures "brick-like" bales on all loose materials.
Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient.
International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency.
The press heads are specially processed by planomiller, ensures the precise running of the ram.
Hydraulic configuration: low noise hydraulic loop system, adopt the combination of imported and domestic high-quality parts, it not only guarantees the quality, but also reduces the cost, stable overall performance.
Electrical configuration: PLC control is adopted to make the circuit simple, low failure rate, simple and fast to check and eliminate.
Shear knife: international universal scissors design, improve the efficiency of cutting paper, extend the service life of the blade.
Baling machine: international newest baling machine, saving wire, fast bundling, low failure rate, easy to clean and maintain.
The installation is simple and the foundation construction is simple, no need for foundation reinforcement.
Equipped with rapid automatic tying system, Fast speed, simple structure, stable action, low failure rate and easy maintenance.
Custom Services
It can be customized according to the maximum and minimum sizes required by the customer.
Technical Parameters
| NO. | Parameter Name | |
| 1 | main oil cylinder pressure | Φ 120mm-Φ160mm |
| 2 | Pressure | 60T |
| 3 | Hydraulic system operating pressure | 16-18MPA |
| 4 | Feed Opening size | 1200*700*1000 |
| 5 | Bale Size | W750*H750*1600 ( L can be adjustable) |
| 6 | Bale Density | ≥ 150KG-200KG/ mз |
| 7 | Baler line | Wire tie 2.6/3mm 3Line |
| 8 | Power system | High and low pressure combination of hydraulic system |
| 9 | Motor power | 18.5kw+4kw |
